The Structure of Cartridge oil filters
Cartridge oil filters
are a type of oil filter commonly used in automotive applications. Unlike spin-on oil filters that come as a single unit, cartridge oil filters consist of two main components: the filter element and the housing. Here is a breakdown of the structure of cartridge oil filters:

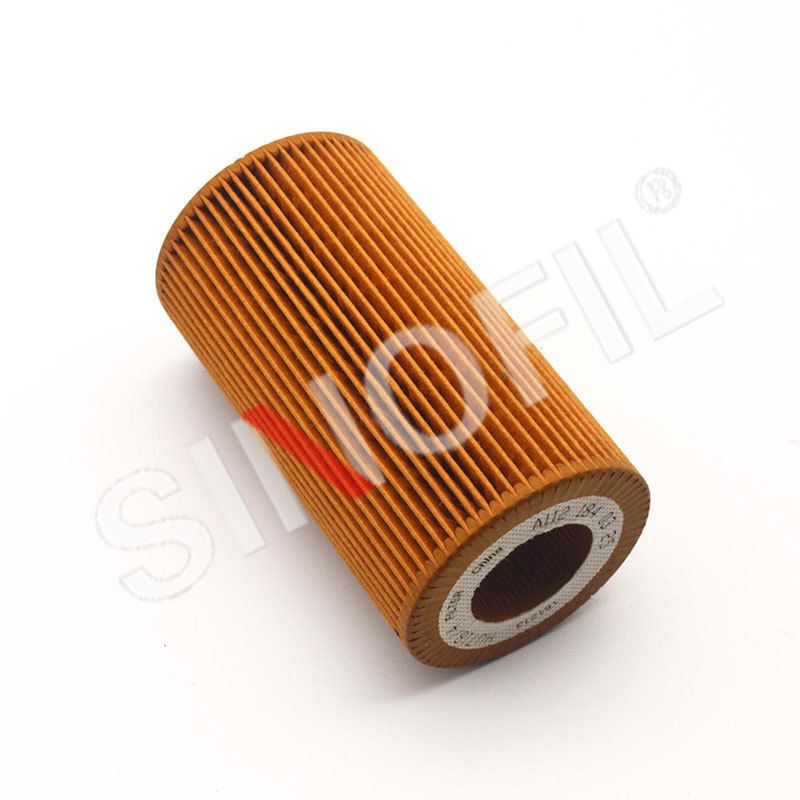

The filter element is the core component of the cartridge oil filter responsible for filtering out contaminants from the oil. It is typically made of a specialized filtration media, such as cellulose, synthetic fibers, or a combination of both. The filter element is designed to trap and hold particles of various sizes while allowing the oil to flow through.
The filter element can come in different shapes and configurations, depending on the specific design and application. Some filter elements are flat or rectangular in shape, while others are cylindrical or pleated to increase the filtration surface area. The pleated design helps enhance the filter's dirt-holding capacity and efficiency.
The housing of a cartridge oil filter is a metal or plastic casing that encloses the filter element and provides protection and structural support. It typically has inlet and outlet ports for the oil to flow through. The housing also has a cover or lid that allows access to the filter element for replacement or maintenance.
The housing may have various features depending on the specific design, including sealing gaskets or O-rings to ensure a proper seal and prevent oil leaks. It also includes connectors or mounting points to securely attach the filter housing to the engine or the filter housing assembly.
In some cartridge oil filter designs, the housing may have built-in pressure relief valves or bypass valves. These valves are designed to open and allow oil to bypass the filter element under certain conditions, such as when the filter becomes clogged or the oil viscosity is too high. This ensures that the engine continues to receive lubrication even if the filter becomes restricted.
Cartridge oil filters require a separate housing or housing assembly for installation. The housing is typically mounted on the engine block or an oil filter housing adapter, which provides the necessary connections for oil flow.
How to Choose Cartridge oil filters
Choosing the right cartridge oil filter
for your vehicle is essential for maintaining proper engine lubrication and protecting the engine from contaminants. Here are some factors to consider when selecting a cartridge oil filter:
Compatibility: Ensure that the cartridge oil filter you choose is compatible with your vehicle's make, model, and engine specifications. Check the manufacturer's recommendations or consult your vehicle's manual to find the correct filter part number or specifications.
Filtration Efficiency: Consider the filtration efficiency of the cartridge oil filter. Look for filters that offer high-efficiency filtration, capable of capturing a wide range of contaminants, including dirt, debris, and metal particles. Higher filtration efficiency helps to keep the engine oil cleaner and prolong engine life.
Filter Media: Check the type of filter media used in the cartridge filter. Common types include cellulose, synthetic, or a combination of both. Synthetic filter media is known for its superior filtration performance and durability compared to cellulose media. Synthetic filters typically have a longer lifespan and can handle higher oil flow rates.
Micron Rating: The micron rating indicates the filter's ability to capture particles of a specific size. A lower micron rating signifies a finer filtration capability. Consider the specific requirements of your engine and driving conditions to determine the appropriate micron rating for your cartridge oil filter.
OEM or Aftermarket: Decide whether you want to go with an original equipment manufacturer (OEM) cartridge oil filter or an aftermarket alternative. OEM filters are designed specifically for your vehicle and are guaranteed to meet the manufacturer's specifications. Aftermarket filters may offer a wider range of options, including high-performance filters or filters with additional features, but be sure to choose a reputable brand.
Quality and Brand Reputation: Choose a cartridge oil filter from a reputable manufacturer known for producing high-quality filters. Look for brands with a solid reputation for reliability, durability, and excellent filtration performance. Read reviews and seek recommendations from trusted sources or automotive professionals to guide your decision.
Maintenance and Replacement: Consider the maintenance and replacement requirements of the cartridge oil filter. Some filters may require more frequent replacements due to their design or the driving conditions. Check the manufacturer's recommendations for the recommended replacement interval and ensure it aligns with your maintenance schedule.
Price: While price shouldn't be the sole determining factor, it's important to consider your budget. Balance the quality and features of the cartridge oil filter with its cost to ensure you're getting a filter that provides good value for money.
